Navigating Tile Installation Cost Colorado Springs

Clear, straightforward answers on project pricing, substrate preparation, large-format porcelain, and what it takes to build lifetime-grade custom tile installations across the Front Range.

Tile Installation Cost & Technical Standards in Colorado Springs

When planning a high-end remodel, understanding your true tile installation cost Colorado Springs requires looking beyond basic square-footage estimates. Standard metrics easily budget basic builder-grade floors. However, premium custom applications—like continuous curbless showers, gauged porcelain slabs, and intricate herringbone layouts—require precise substrate engineering, specialized LHT mortar, and advanced waterproofing. Below, we break down what goes into estimating premium tile work across the Front Range so you can budget for an installation built to last a lifetime.

How much does custom tile installation cost Colorado Springs?

National averages for standard basic tile floor installation sit around $16.38 to $20.21 per square foot. However, a true custom tile installation cost in Colorado Springs will vary significantly based on project complexity, not just room size. Standard labor alone typically ranges from $15 to $25 per square foot for basic layouts. But premium natural stone and large-format porcelain installations require specialized labor. That can range from $40 to over $80 per square foot for installation only.

At XCEL TILE, we factor the specific technical requirements of your space into every comprehensive project quote. For example, removing old flooring typically adds $5 to $10 per square foot. We also calculate the cost of critical subfloor leveling to prevent lippage on large-format tiles. A custom wet room or large-format slab wall requires continuous, flood-tested waterproofing and advanced setting materials. Therefore, we provide precise, upfront estimates based on the specific architectural demands of your home, rather than a flat square-foot rate.

Kitchen wall under construction Colorado Springs, CO, showcasing a floor-to-ceiling white marble herringbone tile installation centered between white upper cabinets over a quartz countertop by XCEL TILE.
Extending a marble herringbone backsplash to the ceiling between upper cabinets creates a dramatic, high-end architectural focal point.

Advanced Installation Techniques FAQ

The industry defines large-format tile as any tile with at least one edge measuring 15 inches or longer, up to porcelain slabs that can reach nearly 10 feet. Because a large tile spans so much surface area, it is incredibly unforgiving of uneven floors. Without a perfectly level subfloor, you will experience ‘lippage,’ where one tile sits higher than the next. Industry standards require the substrate to be perfectly flat within 1/8 inch over a 10-foot radius. At XCEL TILE, we prioritize rigorous subfloor leveling and use specialized LHT mortar to ensure a flawless, seamless finish.

Custom tile work requires exact technical precision to prevent cracking, water damage, and lippage. That’s especially true when it comes to curbless wet rooms and large-format installations. The Ceramic Tile Education Foundation (CTEF) certification requires passing comprehensive written and hands-on exams to prove an installer meets strict ANSI Standards and TCNA guidelines. A CTEF-certified installer properly prepares your substrate, applies the correct specialized adhesives, and guarantees the waterproofing protects your home’s structure.

Yes. Large-format tile is highly popular for open-concept floors and large custom showers. And it can actually make a small bathroom appear larger. Because large tiles require fewer grout lines, they reduce visual clutter and create a clean, seamless aesthetic that visually expands the space. However, small or awkwardly shaped rooms require highly strategic layout planning to balance the center point and minimize excessive cuts.

A curbless shower requires lowering the subfloor or recessing the shower pan. The result is the finished tile seamlessly aligns with the bathroom floor without a trip hazard. Because there is no raised curb to contain water, the entire room requires continuous, flood-tested waterproofing—typically using bonded sheet membranes or integrated uncoupling systems—and precise floor pitch toward a linear or center drain. Every wet room installation must meet strict TCNA guidelines to ensure zero water migration into surrounding wall framing or subfloors.

Manufacturers engineer Gauged porcelain tile panels (GPTP) as massive slabs up to 5×10 feet in size and as thin as 3mm to 6mm. Installing these panels requires specialized vacuum-cup handling frames, diamond-blade track cutting tables, and proprietary continuous back-buttering techniques to ensure 100% mortar coverage without air pockets. Standard tile techniques will cause these thin panels to crack under pressure. To prevent failure, technicians trained in advanced slab handling must install them strictly to ANSI A108.19 standards.

For standard square or rectangular tile running in a traditional 50% offset grid, a 10% to 15% overage is standard. However, complex patterns like a 45-degree herringbone, chevron, or diagonal layout require significantly more perimeter diagonal cuts and sorting, raising the required waste factor to 18%–20%. Ordering adequate extra material upfront ensures dye-lot and caliber consistency across your entire project and avoids costly mid-project freight delays.

Standard thin-set shrinks slightly as it dries and relies on moisture evaporating through grout joints. This evaporation is impossible under a 24×48-inch or 48×48-inch impervious porcelain tile. Large tiles require non-slump, polymer-modified Large and Heavy Tile (LHT) mortar. LHT mortar maintains a thicker bed without slumping under the weight of the tile, ensuring full mechanical adhesion, preventing hollow spots, and keeping tiles flush without lippage.

Lippage is where one tile sits higher than the adjacent tile. We prevent tile lippage through three mandatory steps: subfloor prep, proper overlap pattern, and mechanical leveling systems. TCNA standards prohibit installing tiles longer than 15 inches in a traditional 50% brick-joint pattern due to the extreme risk of center-crown lippage. Instead, we lay these tiles at a maximum 33% offset or a third-running bond. We combine mechanical leveling clips with subfloors flattened to within 1/8-inch over 10 feet to produce a dead-flat surface.

Our dry climate and extreme temperature fluctuations in areas like Monument, Castle Rock, and Woodland Park put unique stress on tile installations, particularly for exterior stone fireplaces or unheated sunrooms. To prevent cracking from expansion and contraction, we utilize advanced uncoupling membranes and specific modified thin-sets designed to absorb substrate movement. Proper expansion joints are mandatory in our region to ensure your tile or stone installation lasts a lifetime without failing.

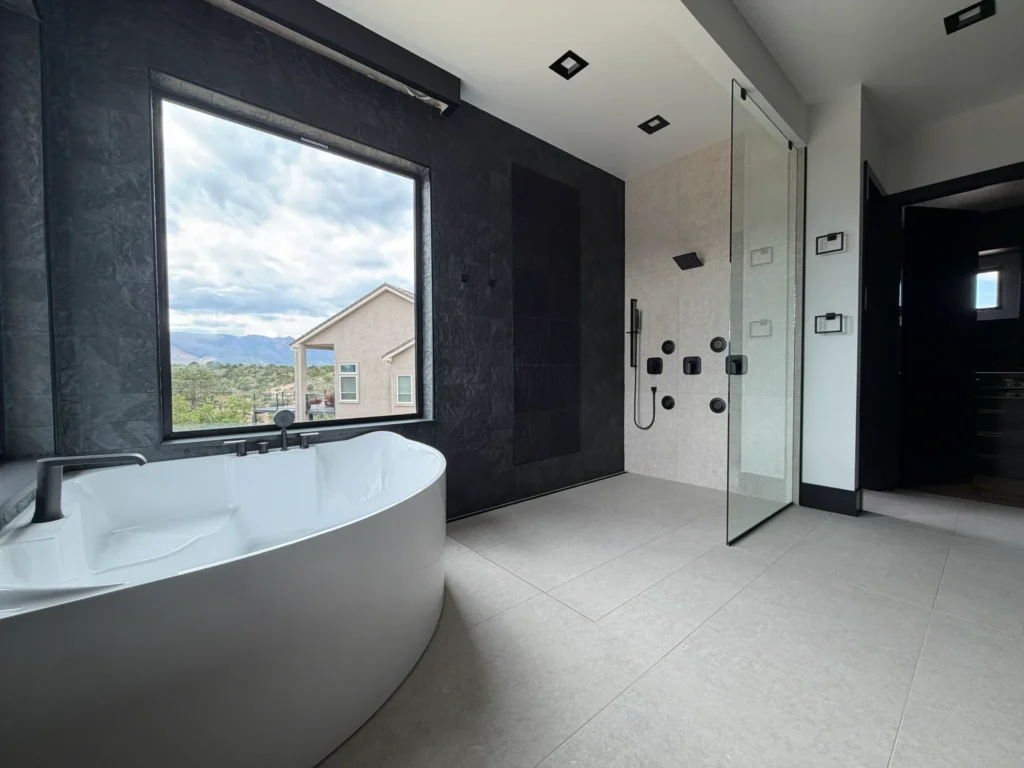

Open-concept luxury master bathroom featuring a curbless walk-in shower, dark textured slate accent walls, and a freestanding tub. Custom Tile Installation Cost Colorado Springs | XCEL TILE
Curbless walk-in showers seamlessly blend safety, accessibility, and high-end modern design.
why choose XCEL Tile?

CTEF Certified Tile Installer #1895 & NTCA Member

As one of the few certified custom tile installers in Colorado Springs, I bring over 15 years of trade experience to every project. My active CTEF Certification (#1895) guarantees that your installation meets the industry’s most rigorous technical standards.

The CTEF Certified Tile Installer program is the only third-party assessment of installer skill and knowledge that is recognized by the tile industry.

Ready to Elevate Your Space with Flawless Tile Work?

Great tile work starts with proper substrate engineering and meticulous attention to detail. Contact us today to discuss your project scope and get a comprehensive, honest estimate for your home.
